TAKEUCHI MINI-EXCAVATOR –
TB 210 R

Send enquiry

Technical Details TB 210 R

Operating weight
1,150 kg

Engine power
8,8 kW (12,0 h.p.)

Digging depth
1,755 mm

Track width
750–1,020 mm

Total height
2,190 mm

TB 210 R –
special features (excerpt)

Small track width of 750 mm – allows working in very confined spaces

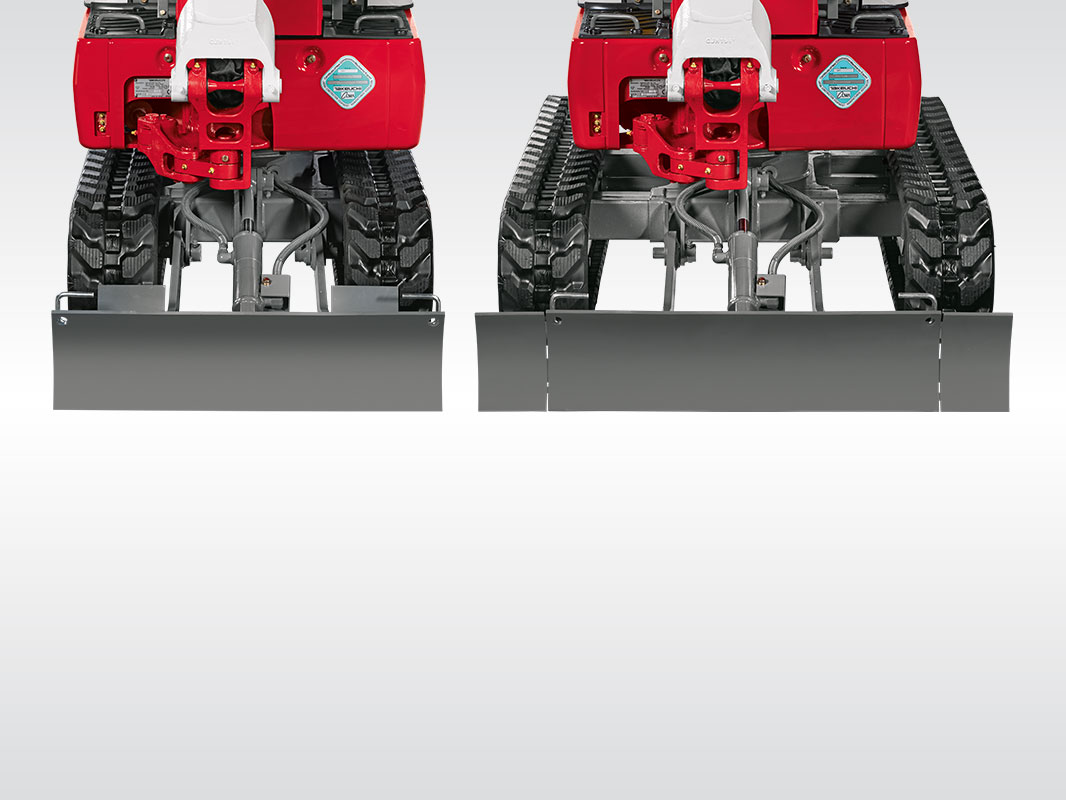

High stability thanks to hydraulically adjustable track width from 750 mm to 1,020 mm
Hydraulically controlled joysticks
ROPS bar (foldable) as standard
Auxiliary hydraulic circuits as standard, designed for reversible attachments

Excavator operators appreciate the TB 210 R for its

Easy operation and optimum control
Hydraulically controlled joysticks
Ergonomic armrests
Wide doorways for easy access
Low operating noise and vibrations

Takeuchi excavators can optionally be supplied with the TAKLOCK quick-hitch system to allow hydraulic lines of attachments to be changed even under pressure.

Foldable ROPS bar

Compact in size (width: 750 mm, transport length: 3,415 mm, height: 2,190 mm) and with load lashing eyes as standard, the TB 210 R is easy to load and transport.

The TB 210 R – a great sustainable decision for your operations and your business

All-steel design – protects components and ensures lasting durability
Dozer blade with box-type section for high torsion resistance and easy-to-handle widening
Tear-safe hose installation on boom cylinder
Solid guard ensures perfect protection of the hose lines at the pivot boom
Extra-strong bolts and connectors

Low-consumption diesel engine with low emissions.

Covers and guards of solid steel plate with optimum accessibility
Easily accessible filler necks for simple refuelling (problem-free refuelling from petrol cans)
Tool-free, easy access to all service points

The needs of excavator operators take centre stage in all machines made by Takeuchi and Wilhelm Schäfer. Driven by the highest standards for quality and innovative solutions, we create the best possible conditions for your working routine. The standard features of Takeuchi construction machinery are as varied as their possible applications. Takeuchi’s signature design also stands for highest durability, economical operations and long service life.
