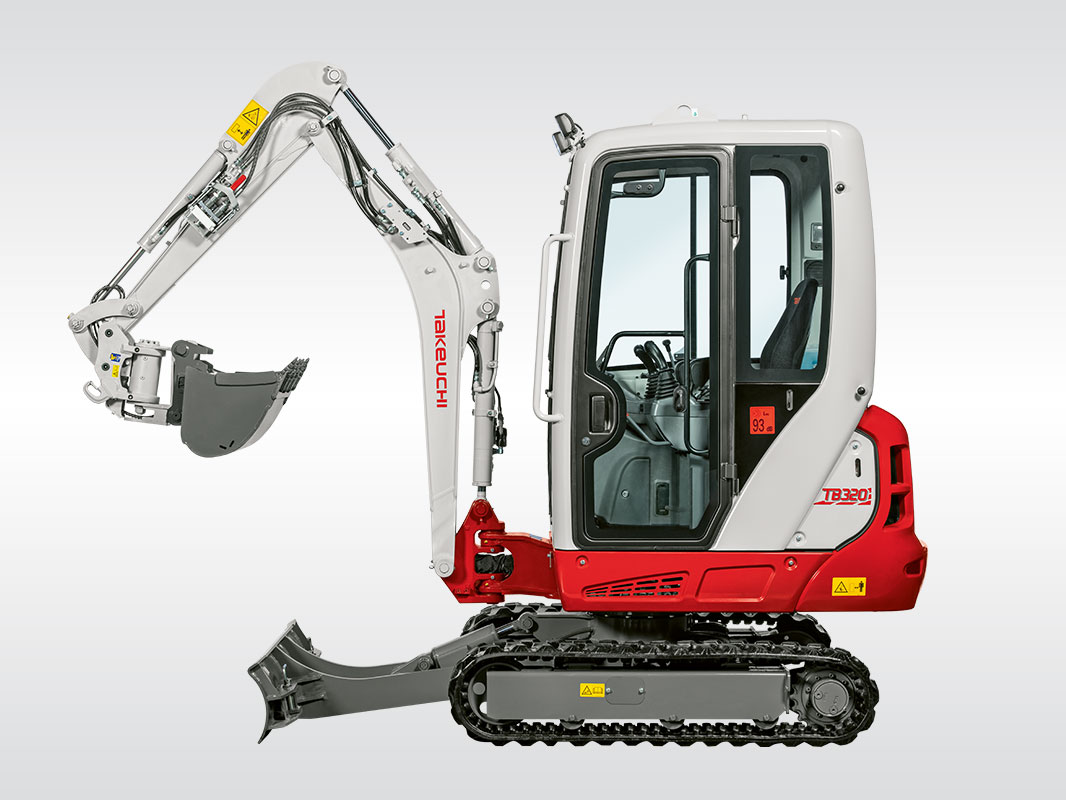

TAKEUCHI MINI-EXCAVATOR –
TB 320

Send enquiry

Technical Details TB 320

Operating weight
2,060 kg

Engine power
12,0 kW (16,3 h.p.)

Digging depth
2,370 mm

Track width
980–1,370 mm

Total height
2,375 mm

TB 320 –
special features (excerpt)

Easy to transport
One proportional slider switch per joystick
Retractable front window

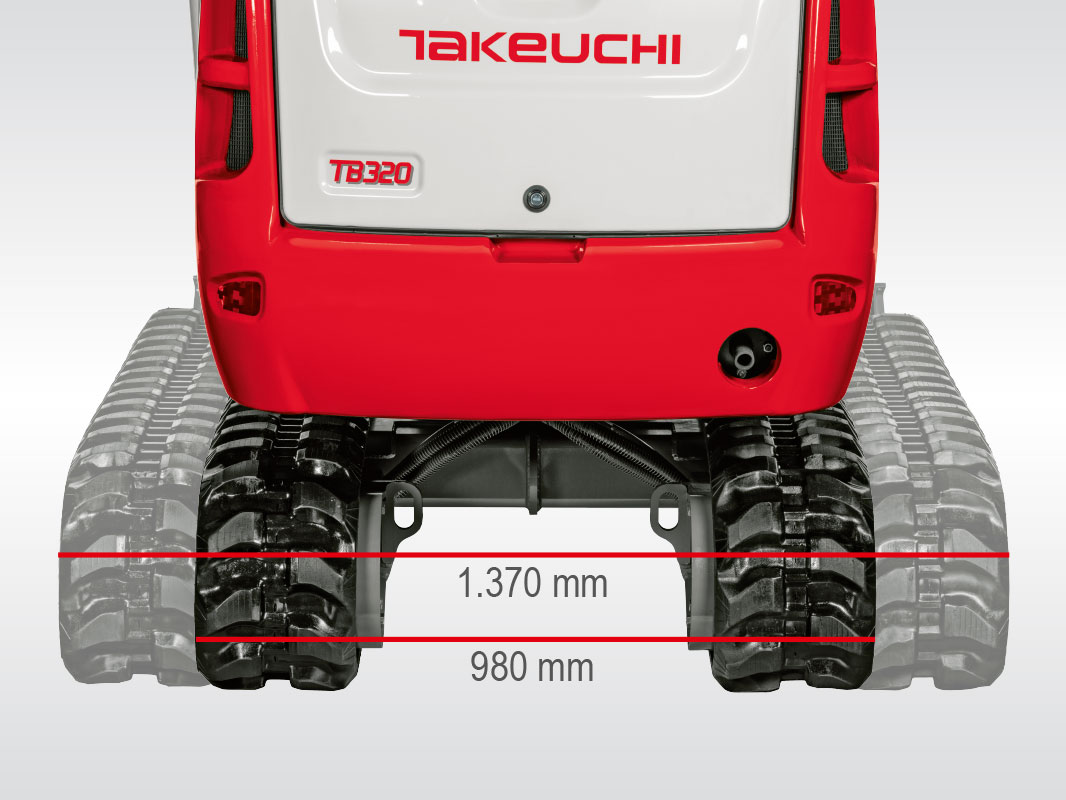

High stability thanks to hydraulically adjustable track width from 980 mm to 1,370 mm
Extra-long and high dozer blade adjustable to track width
Short-pitch chains
Up to 4 auxiliary circuits
4 hydraulic pumps

Excavator operators appreciate the TB 320 for its

Easy operation and optimum control
Hydraulically controlled joysticks
Ergonomic armrests
Seat adjustable to operator’s weight
Wide doorways for easy access
Low operating noise and vibrations

Takeuchi excavators can optionally be supplied with the TAKLOCK quick-hitch system to allow hydraulic lines of attachments to be changed even under pressure.

Safety cabin TOPS/ROPS/FOPS

Compact in size (width: 985 mm, transport length: 4,245 mm, height: 2,380 mm) and with standard lashing eyes, the TB 320 is easy to load and transport.

The TB 320 – a great sustainable decision for your operations and your business

Triple flanged track rollers undercarriage rollers with high-quality undercarriage components
All-steel design – protects components and ensures lasting durability
Dozer blade with box-type section for high torsion resistance and easy-to-handle widening
Tear-safe hose installation on boom cylinder
Solid guard ensures perfect protection of the hose lines at the pivot boom
Extra-strong bolts and connectors

Low-consumption diesel engine with low emissions

Covers and guards of solid steel plate with optimum accessibility
Easily accessible filler neck and fill level indicator for simple refuelling (problem-free refuelling from petrol cans)

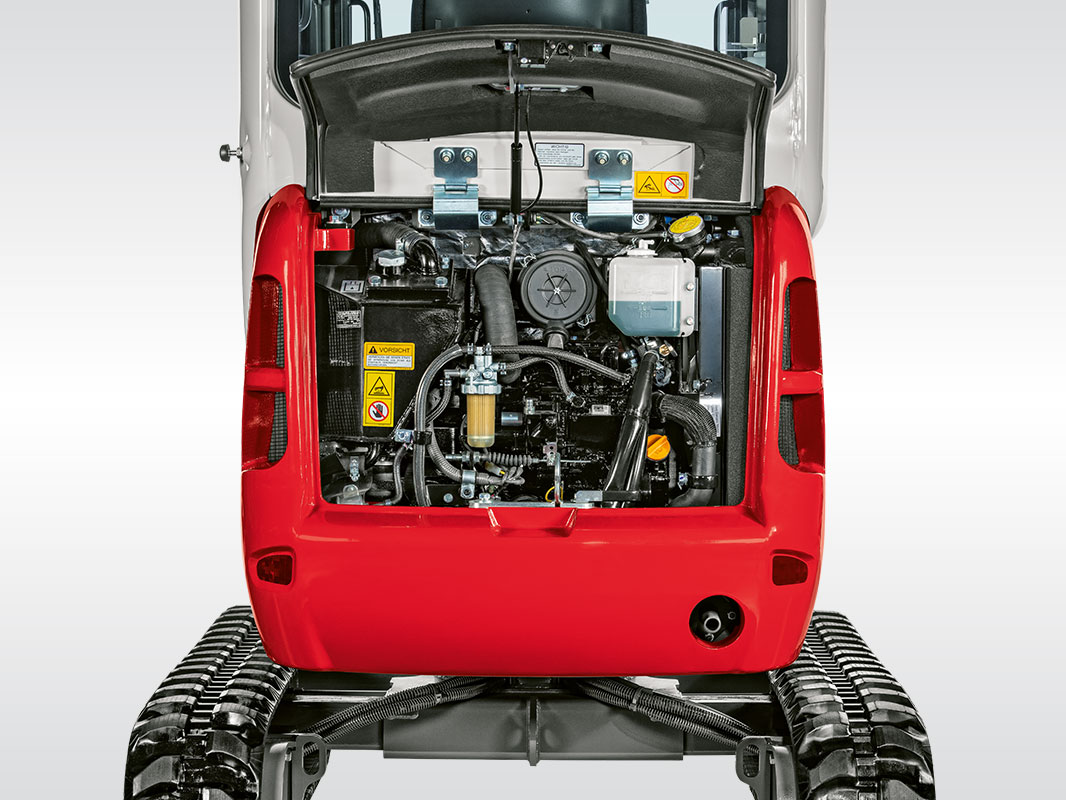

Tool-free, easy access to all service points

The needs of excavator operators take centre stage in all machines made by Takeuchi and Wilhelm Schäfer. Driven by the highest standards for quality and innovative solutions, we create the best possible conditions for your working routine. The standard features of Takeuchi construction machinery are as varied as their possible applications. Takeuchi’s signature design also stands for highest durability, economical operations and long service life.
