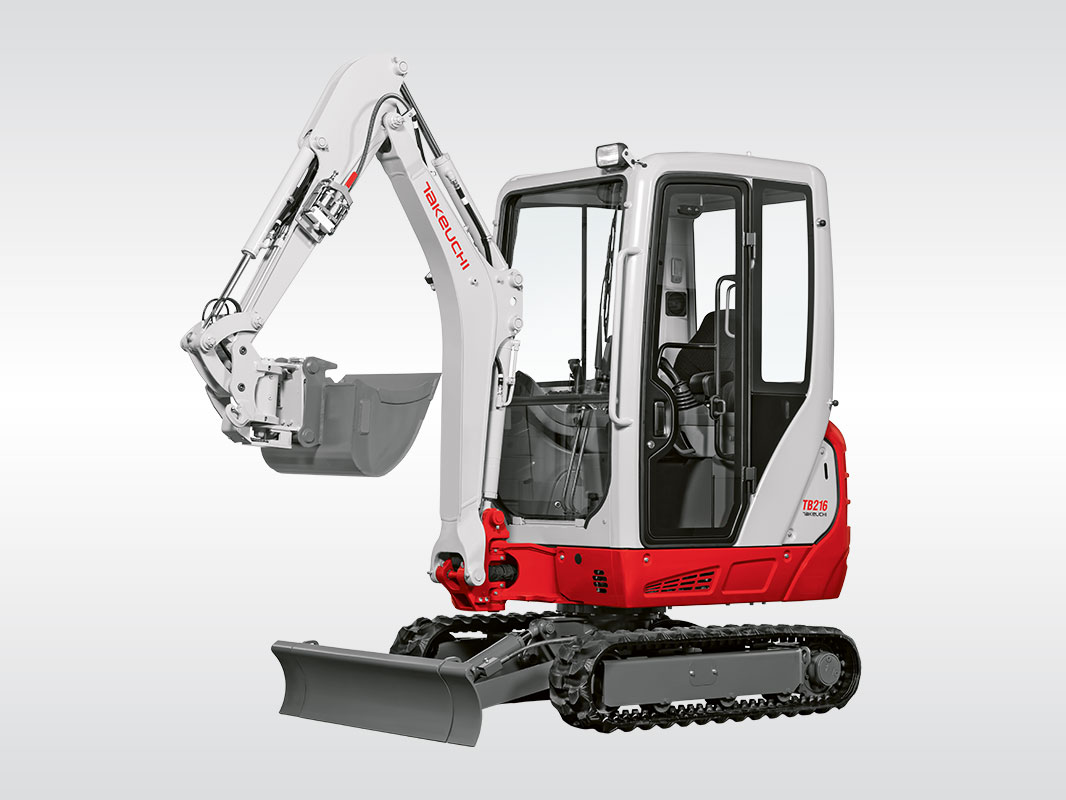

TAKEUCHI MINI-EXCAVATOR –
TB 216

Send enquiry

Technical Details TB 216

Operating weight
1,865 kg

Engine power
11.5 kW (15,6 h.p.)

Digging depth
2,390 mm

Track width
980–1,300 mm

Total height
2,360 mm

TB 216 –
special features (excerpt)

Cabin with tinted glass window
Retractable front window
New boom geometry for max. dump height of 2,705 mm
High stability thanks to hydraulically adjustable track width from 980 mm to 1,300 mm
Extra-long and high dozer blade adjustable to track width
Short-pitch chains
Up to 4 auxiliary circuits
4 hydraulic pumps

Excavator operators appreciate the TB 216 for its

Easy operation and optimum control
Hydraulically controlled joysticks
Ergonomic armrests
Seat adjustable to operator’s weight
Wide doorways for easy access
Low operating noise and vibrations

Takeuchi excavators can optionally be supplied with the TAKLOCK quick-hitch system to allow hydraulic lines of attachments to be changed even under pressure.

Safety structure TOPS/ROPS/OPG level 1

Compact in size (width: 1,055 mm, transport length: 4,040 mm, height: 2,360 mm) and with standard lashing eyes, the TB 216 R is easy to load and transport.

The TB 216 – a great sustainable decision for your operations and your business

Triple flanged track rollers undercarriage rollers with high-quality undercarriage components
All-steel design – protects components and ensures lasting durability
Dozer blade with box-type section for high torsion resistance and easy-to-handle widening
Tear-safe hose installation on boom cylinder
Solid guard ensures perfect protection of the hose lines at the pivot boom
Extra-strong bolts and connectors

Low-consumption diesel engine with low emissions

Covers and guards of solid steel plate with optimum accessibility
Easily accessible filler necks for simple refuelling (problem-free refuelling from petrol cans)

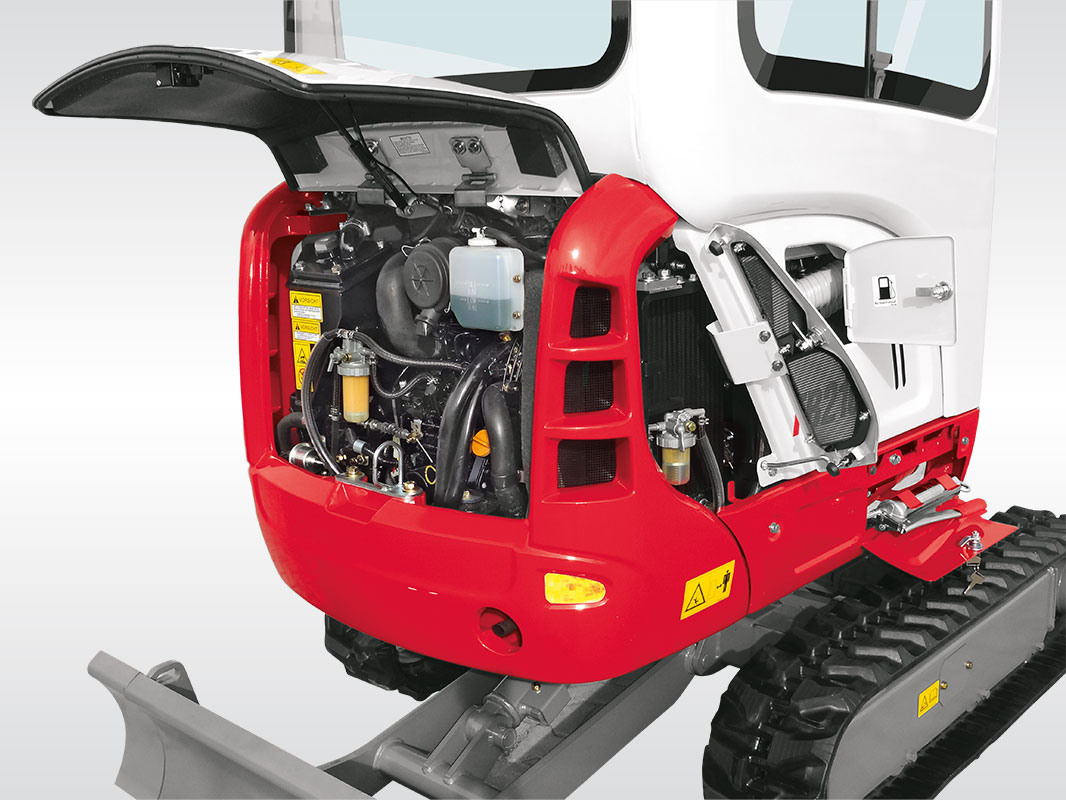

Tool-free, easy access to all service points

The needs of excavator operators take centre stage in all machines made by Takeuchi and Wilhelm Schäfer. Driven by the highest standards for quality and innovative solutions, we create the best possible conditions for your working routine. The standard features of Takeuchi construction machinery are as varied as their possible applications. Takeuchi’s signature design also stands for highest durability, economical operations and long service life.
